3 Pieces Ball Valve With Pneumatic Rotary Actuator

Name: 3 Pieces Ball Valve With Pneumatic Rotary Actuator
Brand: ENGIPRO SOLUTIONS LLP
Price: 3000-10000 INR
Availability: InStock

Price 3000-10000 INR/ Piece

Get a Price/Quote

MOQ : 01 Piece

3 Pieces Ball Valve With Pneumatic Rotary Actuator Specification

Structure
Ball

Connection
New

Material
Stainless Steel

Size
50 to 600 mm

Product Type
Valve

Application
Industrial.

3 Pieces Ball Valve With Pneumatic Rotary Actuator Trade Information

Minimum Order Quantity
01 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Day

Delivery Time
7-10 Days

Sample Available
Yes

Main Export Market(s)
Australia, South America, Western Europe, Middle East, Central America, Asia, Eastern Europe, North America, Africa

Main Domestic Market
All India

About 3 Pieces Ball Valve With Pneumatic Rotary Actuator

We are engaged in providing an extensive range of 3 Pieces Ball Valve With Pneumatic Rotary Actuator which is made for better quick shut off and emission control. It is made by using premium quality raw materials and latest technology. Our product is known for their sturdiness and lifelong service. It is widely demanded in different industries owing to their efficiency, durability and robustness. This range is available in different metals like stainless steel, carbon steel, cast iron and mild steel.

Let's break down the components and their functions:

1. 3-Piece Ball Valve:

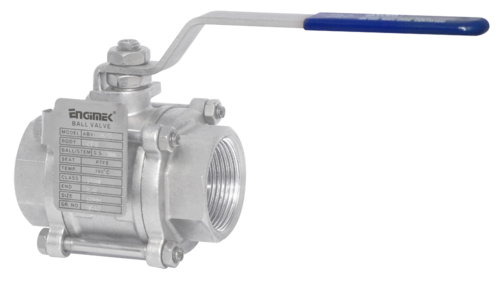

A ball valve is a type of quarter-turn valve that uses a spherical ball with a hole through its center to control the flow of fluids. In a 3-piece ball valve design, the valve body is constructed from three separate pieces: the center section and two end caps. This design allows for easy maintenance and repair by removing the center section without having to disconnect the entire valve from the pipeline.

2. Pneumatic Rotary Actuator:

A pneumatic rotary actuator is a device that converts pneumatic pressure (compressed air) into rotary motion. It is used to automate the opening and closing of valves, such as ball valves, by providing the necessary torque to turn the valve's shaft. The actuator can be controlled remotely by adjusting the air pressure supplied to it.

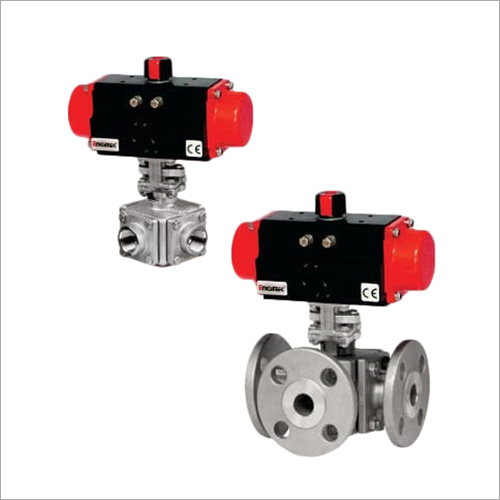

When combining a 3-piece ball valve with a pneumatic rotary actuator, the valve's open and close functions are automated. The actuator is attached to the valve's shaft and is responsible for turning the ball within the valve body. When air pressure is applied to the actuator, it generates the rotational force required to open or close the valve. Releasing the air pressure allows the actuator's springs (if equipped) or other mechanisms to return the valve to its original position.

Applications of this setup are widespread across industries that require fluid flow control, such as:

1. Industrial Processes: Used to control the flow of liquids or gases in various manufacturing and industrial processes.

2. Chemical Industry: Handling corrosive or hazardous fluids where manual operation might pose risks.

3. Water Treatment: Managing the flow of water in treatment plants.

4. Oil and Gas: Regulating the flow of crude oil, natural gas, and other hydrocarbons.

5. Petrochemicals: Used in refineries to control fluid movement.

6. HVAC Systems: Managing heating, ventilation, and air conditioning systems.

7. Pharmaceuticals: Precise control of fluid movement in pharmaceutical manufacturing.

The combination of a 3-piece ball valve and a pneumatic rotary actuator offers efficient and automated fluid control, reducing the need for manual intervention and improving operational efficiency.
